Load Bearing: >30T(static)
Warranty: 12 Months
Body material: Heavy-duty casting aluminum
Battery: Lithium battery 1000mA
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Aluminum Solar studs light Features:
•Up to 800 meters of visibility.
•Reliable all night, all-year-round performance.
•Totally sustainable harnessing free solar energy.
•Used where street lighting is either unavailable, Solar Stud Light not cost-effective, or environmentally impossible.
•Cost-effective, LED Solar Stud Lights are easy to install and require absolutely no wires or maintenance.
•Solar-powered Solar Stud Light self-contained surface mounted.
•Solar Stud Light for road accept OEM/ODM
Aluminum Solar Stud Light Pavement Marker Parameters:
|Power supply:||Solar panel(monocrystalline 2.5V/0.3W)|
|Battery:||Lithium battery 1000mA|
|Working model:|| Blinking or Constant
Charging at daytime and working automatically at night
|Life span:||5 years for lithium battery;|

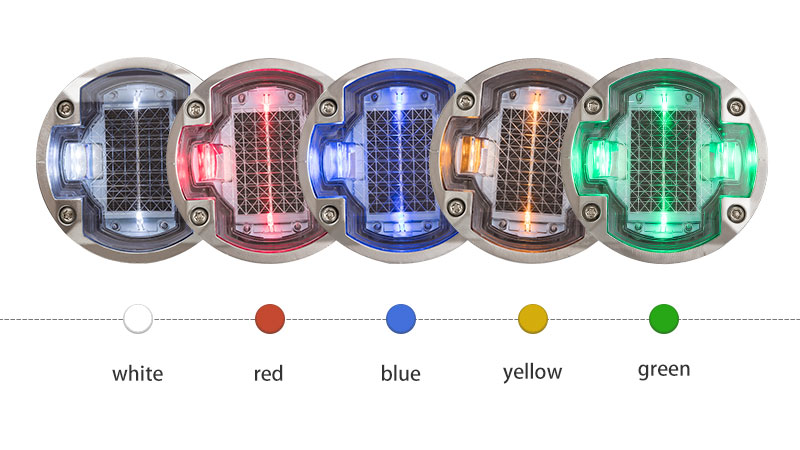

|LED colors:||Yellow, White, Red, Green, Blue|
|Carton Size:|| 1pcs/box; 30pcs/ctn; Weight: 30kgs; Carton size: 67.5*28*20cm
(1pcs/box; 30pcs/ctn; Weight: 66.14bs; Carton size: 26.57″*11.02″*7.87″)
Application of Aluminum Solar Stud Light C3:
♥Schools and hospitals
♥High traffic areas
♥Parks and campuses
How to install Solar Stud Light Pavement Marker C3:
1.Carefully mark the distance between the placement of Solar Stud Light. To prevent an adverse effect on the ground, use a proper tool such as Core Drill. Drill 125mm and depth will be 45mm.
2.Remove all debris from the installation hole.
3.Pour epoxy into the holes per the manufacturer’s instruction.
4.Verity that the installation hole is straight. Verify that the installation hole is large enough to allow the epoxy to surround the Solar Stud Light shaft.
5.Set the lighting surface of the Solar Stud Light to the desired viewing angle. Verify the epoxy is evenly adhering to the installation hole and Solar Stud Light shaft.
After curing the Solar Stud Light for 6-8 hours, remove the installation of the isolation facility.
