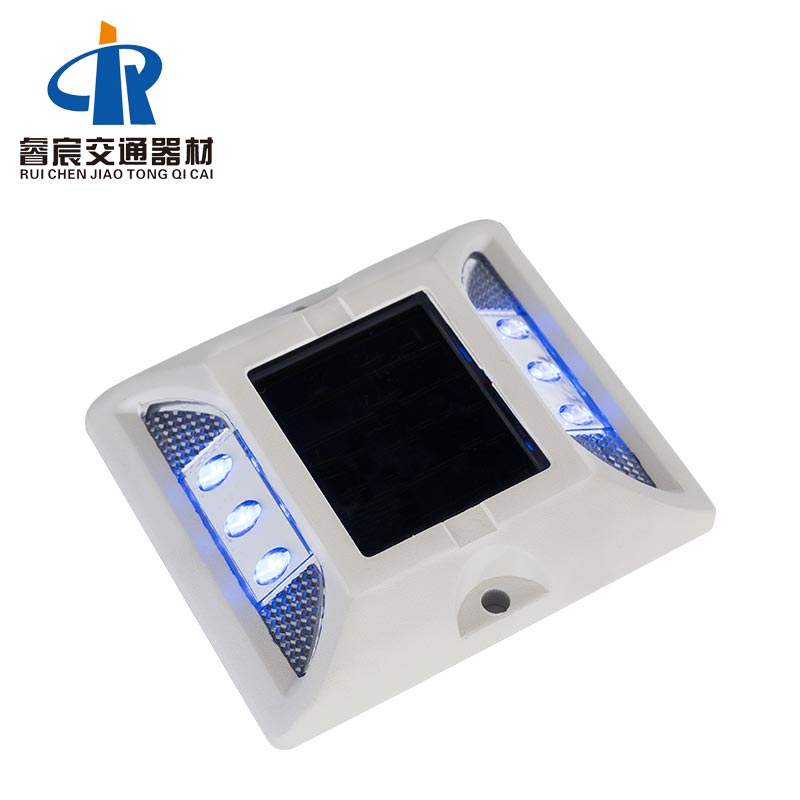

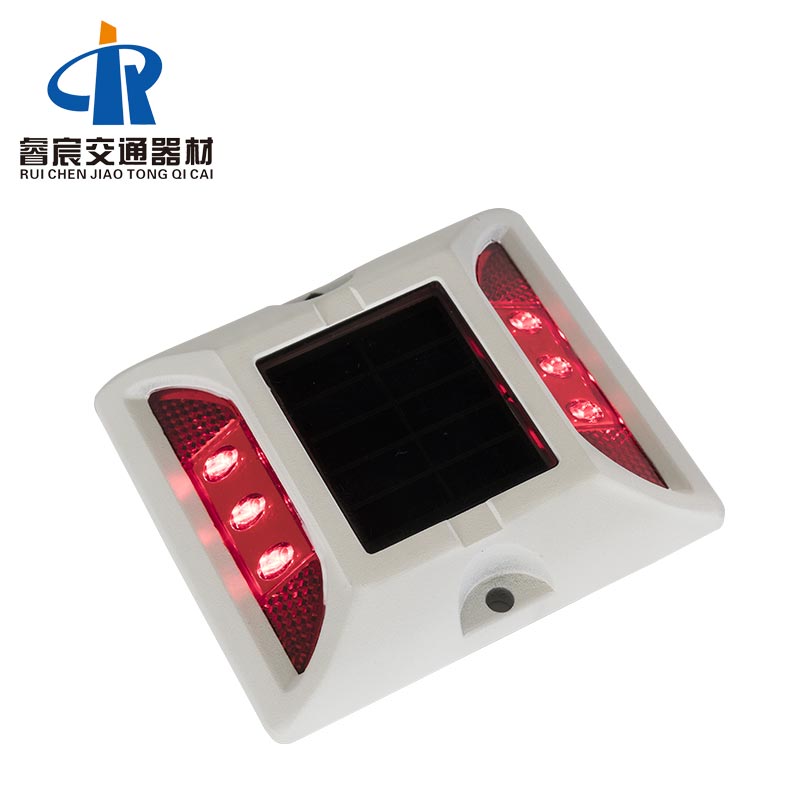

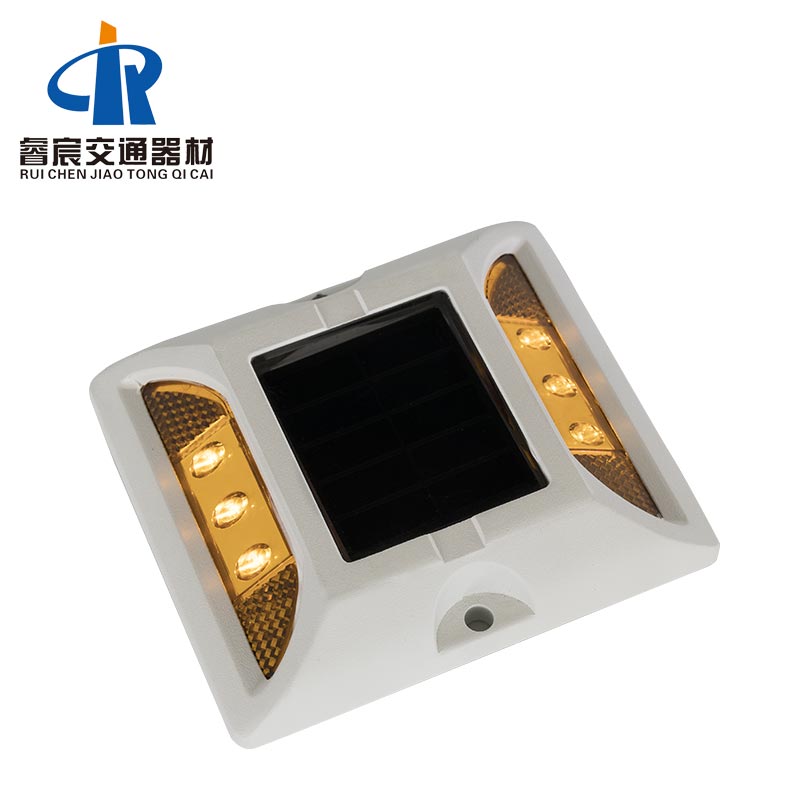

Aluminum solar stud lights With Shank R1

Load Bearing: More Than 30 Tons
Warranty: 18 Months
Body material: GB Cast Aluminium alloy
Power supply: USA Brand Flexible High Efficient Solar Panel (2.5V/0.38W)
Visual distance: > 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: With shank or Without shank

Product Introduction

solar stud light R1 Features:



•High brightness America brand led light with 100000 hours of working time.

•USA brand solar panel. 22% high conversion rate. Fast charge rate.

•Japan brand casting Al material. solar stud light bears more pressure.

•Most quality Epoxy resin glue to fix the solar led stud light, making sure of solar power charge.

•Philips PC board, safe and stable. Long-time warranty for solar stud light.

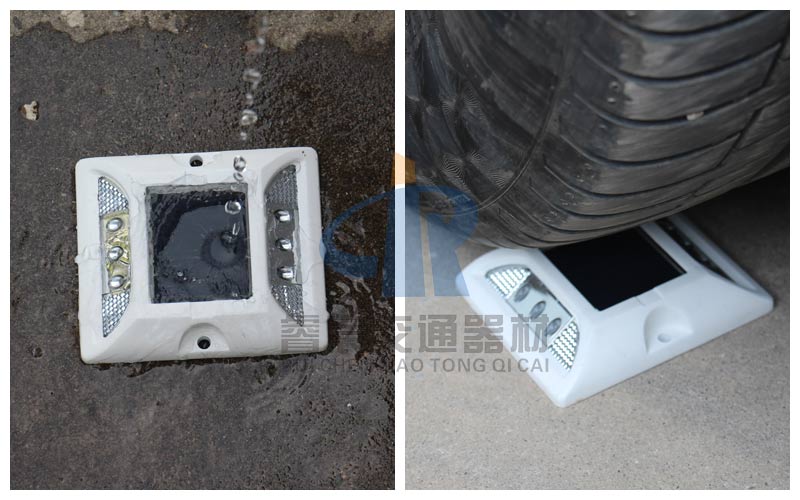

•The leader of solar stud light. Load capacity:>30T(can be installed in the middle of the road)

Aluminum Solar Stud Lights

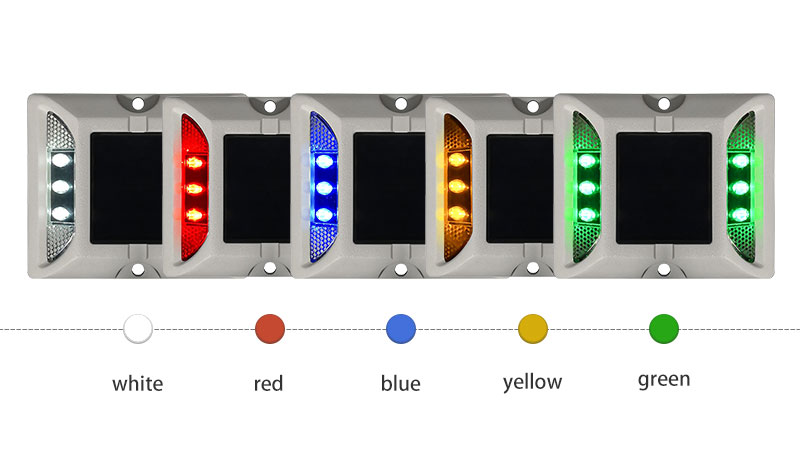

Five colors for chioce: White, Amber, Red, Blue, Green



Aluminum solar stud light Parameters:



Body material: GB Cast Aluminium alloy
Power supply: USA Brand Flexible High Efficient Solar Panel (2.5V/0.38W)
Battery: NI-MH 1.2V/600mah(high-temperature resistance, made in China);
Lithium Battery 3.2V/500MA(made in Japan);
Supercapacitor 2.3V/120F(made in Korea)
LED: Ultra-bright diameter 5mm(4pcs or 6pcs)
Shank: With shank or Without shank
Working model: Blinking or Constant(charging at daytime and working automatically at night)
Load Bearing: More Than 30 Tons
Visual distance: > 800m
Size: L125*W107*H25+55mm  (L4.92″*W4.21″*H0.98″+2.17″)
Package: (without spike): 2pcs/box; 60pcs/ctn; Weight: 28kgs; Carton size: 67.5*28*20cm
(2pcs/box; 60pcs/ctn; Weight: 61.73bs; Carton size: 26.57″*11.02″*7.87″)
(with spike):1pcs/box; 45pcs/ctn; Weight: 30kgs; Carton size: 66.5*44*28cm
(1pcs/box; 45pcs/ctn; Weight: 66.13bs; Carton size: 26.18″*17.32″*11.02″)



aluminum solar studs

aluminum solar stud light R1Application of Aluminum solar stud light R1:

♥Schools and hospitals

♥Highways

♥High traffic areas

♥Walking paths

♥Transit stations

♥Parks and campuses

♥Urban Road



How to install Aluminum solar stud light with shank R1:



1. Carefully mark the distance between the placement of the solar studs. To prevent adverse effects on the ground, use appropriate tools, such as core drills, which have a diameter of 35mm and a depth of 55mm.
2. Remove all debris from the mounting hole.
3. Pour epoxy resin into the hole according to the manufacturer’s instructions.
Make sure that the mounting holes are straight. Make sure that the mounting hole is large enough to allow epoxy resin to surround the solar stud light.
4. Adjust the lighting surface of the solar stud light to the desired viewing angle.
5. Make sure that the epoxy resin adheres evenly to the mounting hole and the solar stud light. Make sure that the bottom of the solar stud light is securely mounted on the mounting surface to ensure that zero “surface floating” occurs. (Space between the installation sign and the bottom of the solar stud light).
6. After curing the LED solar stud lights for 6-8 hours, remove the installation of the isolation facility.
