Diaphragm Pump Road Line Marking Machine RC-CRM-2.3

Engine: 6.5HP ZHONGSHEN gasoline engine
Support nozzle: 1708, 417, 517
Max. Marking speed: 130m/min
Thickness of spray: 0.2-0.4mm
Marking Width: 8-25cm
Flow of spray: 3.8L/min

Product Introduction

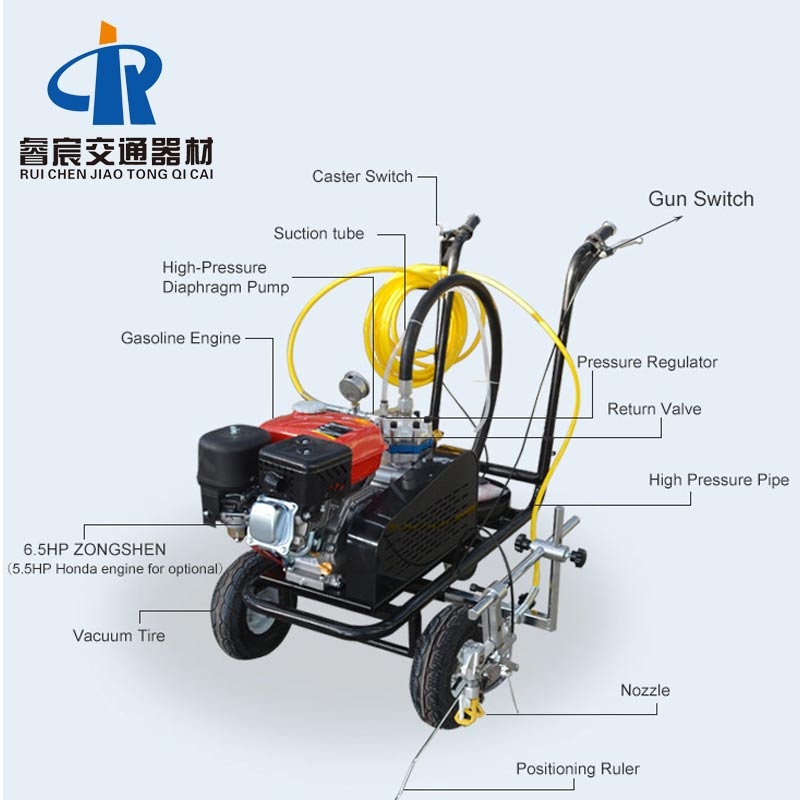

Diaphragm Pump Road Painting Machine Features

•One or two hands spray guns to choose from.

•Diaphragm pump: Stainless diaphragm pump, longer service life.

•5.5HP imported gasoline engine, have a stable and strong performance.

•Special equipment for normal temperature marking construction, easy to operate.

•Road marking spray paint machine is mainly suitable for painting straight lines, dashed lines, curves, zebra crossings, swords, arrows, graphic signs, etc. in factories and on highways, parking lots, airports, and gas stations.

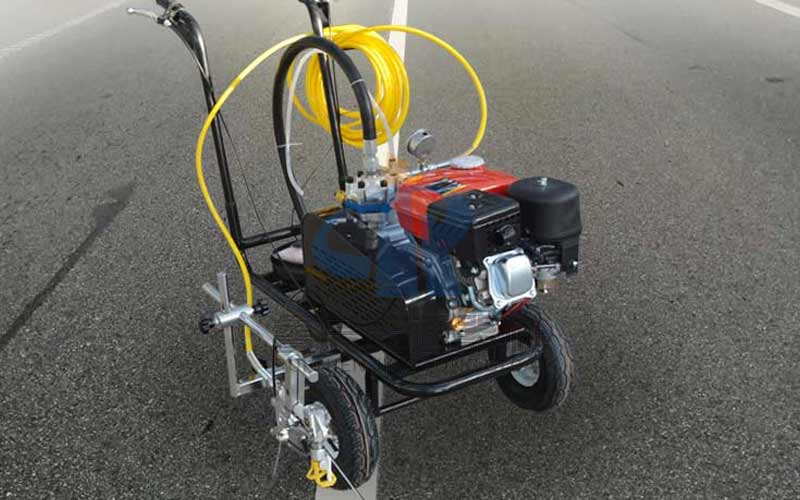

Road Line Marking Machine-4
Road Line Marking Machine



Diaphragm Pump Road Painting Machine Parameters:

Engine: 6.5HP ZHONGSHEN gasoline engine
Max. Marking speed: 130m/min
Support nozzle: 1708, 417, 517
Thickness of spray: 0.2-0.4mm
Marking Width: 8-25cm
Work pressure: 8-16MPa
Flow of spray: 3.8L/min
Size: 1120*790*950mm
Net Weight: 60kg
Package: 95kg



Road Line Marking Machine
Road Line Marking Machine
