Embedded Aluminum LED Solar Stud Lights for Road C1

Load Bearing: >20T(static)
Warranty: 18 Months
Body material: Heavy-duty casting aluminum
Power supply: The solar panel(monocrystalline 2.5V/0.2W)
Visual distance: > 800m
Working Mode: Flashing or Constant
Waterproof: IP68

Product Introduction

Aluminum Solar Stud Lights Features:

•Up to 800 meters of visibility.

•Reliable all night, all-year-round performance.

•Totally sustainable harnessing free solar energy.

•Used where street lighting is either unavailable, Solar Stud Lights not cost-effective or environmentally impossible.

•Cost-effective, LED Solar Stud Lights are easy to install and require absolutely no wires or maintenance.

•Solar-powered Solar Stud Lights self-contained surface mounted.

•Solar Stud Lights for road accept OEM/ODM

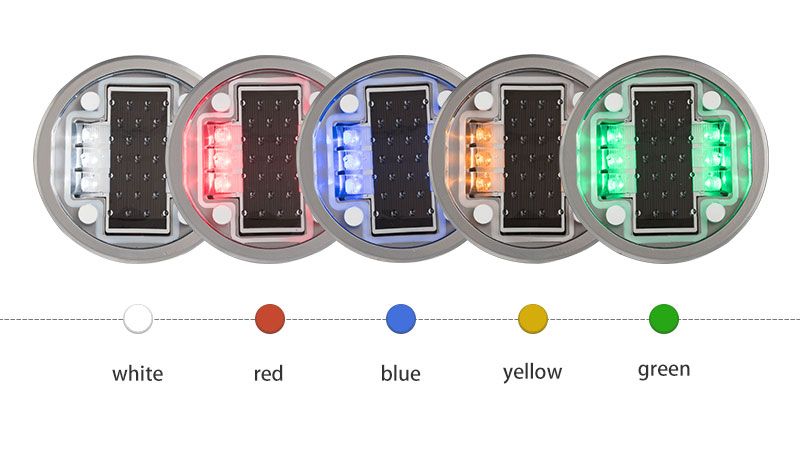

Embedded Aluminum LED Solar Stud Lights for Road color
Five colors for choice: White, Amber, Red, Blue, Green



LED Solar Stud Lights for road Parameters:



    Material: Heavy-duty casting aluminum
    Power supply: The solar panel(monocrystalline 2.5V/0.2W)
    Battery: NI-MH 1.2V/800MAH or lithium battery
    Working model: Blinking or Constant
Charging at daytime and working automatically at night
    LED: 3pcs per side, total 6 pcs
    LED colors: Yellow, White, Red, Green, Blue
    Life span: 3 years
    Resistance: >20T(static)
    Size: 120*50mm(bottom)   4.72″*1.97″(bottom)
135*50mm(upper)   5.31″*1.97″(upper)
    Visual distance: >800M
    Water poof: IP68
    Carton Size: 24pcs/ctn; weight: 17kgs; Carton size: 43*25*28CM/57*41*23.5CM
24pcs/ctn; weight: 37.48bs; Carton size: 16.92″*9.84″*11.02″/22.44*16.14″*9.25″



mbedded Aluminum LED Solar Stud Lights for Road
mbedded Aluminum LED Solar Stud Lights for Road



Application of Aluminum LED Solar Stud Lights C1:

♥Schools and hospitals

♥Highways

♥High traffic areas

♥Walking paths

♥Transit stations

♥Parks and campuses

♥Urban Road



Installation Method Of Embedded Aluminum Solar Stud Lights C1:

1. Carefully mark the distance between the placement of Solar Stud Lights. To prevent an adverse effect on the ground, use a proper tool such as Core Drill. Drill Φ120mm and depth will be 50mm.
2. Remove all debris from the installation hole.
3. Pour epoxy into the holes per the manufacturer’s instruction.
4. Verity that the installation hole is straight. Verify that the installation hole is large enough to allow the epoxy to surround the led Solar Stud Lights shaft.
5. Set the lighting surface of the Solar Stud Lights to the desired viewing angle. Verify the epoxy is evenly adhering to the installation hole and Solar Stud Lights shaft.
6. After curing the LED Solar Stud Lights for 6-8 hours, remove the installation of the isolation facility.
